Name: China Cat Boom Cylinder 330D 3119524 - High-Quality Replacement Parts Manufacturers Suppliers Factory - STONE Engineering Machinery
Brand: STONE
SKU: 245236331

Product Video

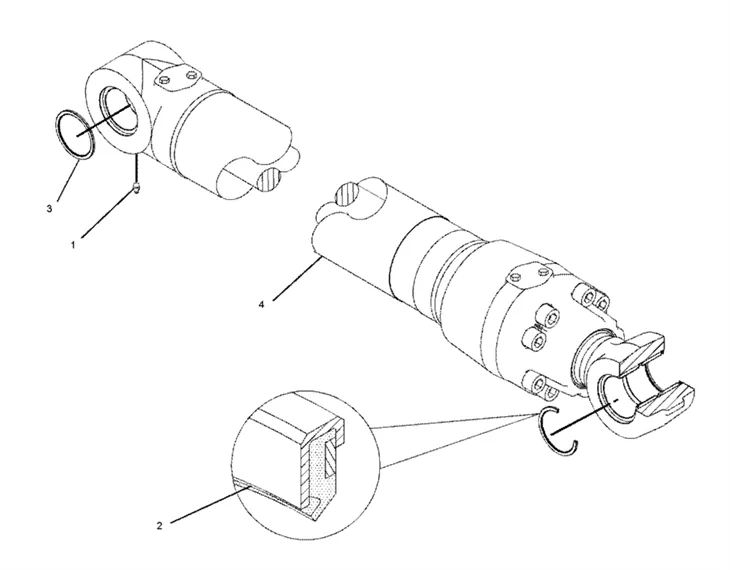

Main specification parameter for 330D cat boom cylinder

Brand	Model	Product Name	Part Number	Assembly Quantity	Weight
Caterpillar	330D	boom cylinder	3119524	2	318KG

Compatible Equipment Models: 3119524

330D

330D L

336D

336D L

Product Details

Product Name	cat boom cylinder
Part Number	3119524
Origin	United States
Brand Name	STONE
Model	330D
Price	Negotiable
Packing Details	Standard Export Packing
Delivery Time	0-30 Days
Payment Term	L/C, T/T
Price Term	FOB, CIF, CFR
Supply Capacity	50,000 PCS/Month
Minimum Order Quantity	1 PC
Material	High Quality Steel
Technology	Precision Machining
Surface	Treatment Anti-Corrosion Coating
Hardness	HRC 48-52
Quality	Original Factory Standard
Warranty Time	12 Months or 2000 Hours
After-Sales Service	Full Support, Online Service
Color	Standard Caterpillar Yellow or Customizable
Application	Excavator
Customizable	including customized materials, surface treatment and specifications

Product Advantages

Choosing our caterpillar excavator cylinder, you will get the perfect combination of durability, cost-effectiveness and high performance, which is the ideal solution to meet your Caterpillar excavator needs.

High-quality materials

Our cat boom cylinders are made of top-grade high-strength steel to ensure long-lasting durability and reliable performance in changing working environments.

Cost-effectiveness

We provide products with comparable performance to the original equipment at a more competitive price, significantly reducing costs while maintaining performance and quality.

Precision craftsmanship

We use advanced processing technology to ensure accurate dimensions and strict tolerances, perfectly matching with Caterpillar excavators and achieving seamless integration.

Performance improvement

Carefully designed to efficiently convert hydraulic energy into mechanical power, achieving smooth and powerful operation and improving excavator working efficiency.

Easy maintenance

Easy-to-maintain design reduces downtime, and high-quality seals and components reduce wear and maintenance costs.

Strict testing

Each boom cylinder undergoes strict quality testing to ensure excellent performance and reliability, exceeding industry standards.

Wide compatibility

Adapt to a variety of Caterpillar excavator models, ensuring flexibility and easy installation without modification.

Professional support

With rich industry experience, we provide comprehensive technical support and after-sales service to help you choose the best accessories.

Application of Boom Cylinder

Boom Cylinder has a wide range of applications, providing key power support and operational flexibility

for various construction machinery. It is mainly used in the following equipment:

1. Excavator:

Crawler excavator: Provides powerful excavation and loading capabilities in earthwork, mining and construction.

Wheeled excavator: In urban and highway construction, it has good maneuverability and flexibility, suitable for operations in small spaces.

2. Loader:

Front-end loader: Used for loading and moving materials in construction and mining operations to ensure smooth operation of the boom.

Skid steer loader: Used for small construction sites and urban maintenance, suitable for various small earthwork and loading operations.

3. Bulldozer:

Crawler bulldozer: Bulldozes and levels the ground in earthwork and mining operations, providing lifting and lowering functions of the boom.

4. Crane:

Crawler crane: Used for lifting and moving heavy materials, assisting in lifting and positioning the boom.

Wheeled crane: Suitable for operations with high mobility requirements, such as municipal engineering and construction sites.

5. Grab machine:

Hydraulic grab machine: used for garbage disposal, waste handling and port loading and unloading, ensuring flexible operation of the boom.

6. Drilling machine:

Hydraulic drilling machine: performs drilling operations in geological exploration and foundation engineering, providing precise positioning of the boom.

7. Other heavy machinery:

Forestry equipment: such as felling machines and tree transplanters, used for lifting and operating booms.

Agricultural machinery: such as backhoe loaders and tractors, helping to complete farmland preparation and irrigation system construction.

Cat Boom Cylinder Care and Maintenance

Regular Inspection and Cleaning

- External Inspection: Regularly check the outer surface of the cylinder for damage, wear or corrosion, and clean the cylinder surface to prevent dust and debris from accumulating and affecting the operation of the seal and piston rod.

- Seal Inspection: Check the seal for leakage, aging or wear, and replace it if necessary to ensure that the hydraulic oil does not leak.

Lubrication and Hydraulic Oil Management

- Lubrication: Regularly lubricate the piston rod and other moving parts to ensure smooth operation and reduce wear.

- Hydraulic Oil Quality: Check the cleanliness and quality of the hydraulic oil to keep the oil in the hydraulic system clean. Regularly replace the hydraulic oil and filter element to prevent impurities from entering the hydraulic system.

Fastener Inspection

- Fastener Inspection: Regularly check all fasteners on the cylinder for looseness, ensure that the bolts and nuts are in good tightening condition, and avoid failures caused by looseness

Piston Rod Protection

- Piston Rod Protection: Check the piston rod for scratches, dents or bends, and repair or replace it if necessary. Keep the surface of the piston rod clean to prevent contaminants from entering the cylinder.

System pressure check

- System pressure check: Check the working pressure of the hydraulic system regularly to ensure that it is within the specified range. Avoid damage to the cylinder due to excessive or low pressure.

Operation smoothness monitoring

- Operation smoothness: Monitor the smoothness of the cylinder during operation and pay attention to whether there is abnormal vibration or noise. Abnormal conditions may be a signal of internal component damage or hydraulic system problems, which need to be promptly checked and handled.

Operation training

- Operation training: Ensure that operators are familiar with the correct use and maintenance procedures of Cat Boom Cylinder to avoid damage caused by improper operation.

Record maintenance log

- Maintenance log: Keep detailed maintenance records, including the time and content of inspection, cleaning, lubrication and replacement of parts. This helps to track the maintenance history of the cylinder and detect and prevent potential problems in advance.

Precautions for use by following these maintenance points, the service life of the Cat Boom Cylinder can be effectively extended to ensure its reliability and efficiency in various operating environments.

Factory details

Product packaging

We adopt a strict packaging process to ensure the safety and reliability of each link. From the selection of raw materials to the final finished product, each step is carefully inspected and tested. Our packaging team has rich experience and expertise, and can provide the best packaging solutions according to different product characteristics and transportation conditions. Our packaging materials and processes meet international standards and can effectively protect the goods from damage. At the same time, we also provide tracking services to ensure the safety of the goods during transportation.

Warehousing

Since 2004, STONE has built a strong set of warehousing and supply chain solutions. Our warehouse covers an area of 3,000 square meters and has more than 10,000 types of product inventory with a value of more than RMB 10 million. This diverse inventory enables us to quickly and reliably meet our customers' urgent needs for high-quality parts. We emphasize efficient and orderly warehouse management to speed up delivery and improve customer satisfaction. With our deep industry experience and advanced inventory management system, STONE is committed to providing customers with a continuously excellent service experience.

Why Choose STONE

Professional experience

STONE has 20 years of industry experience and is a leader in the field of construction machinery parts. Professional knowledge and advanced production ensure product excellence.

Top quality

We provide top parts for bulldozers, excavators, and wheel loaders for brands such as Caterpillar and Komatsu. Our comprehensive OEM series meets stringent quality and performance requirements.

Customized service

STONE's OEM service is precisely customized to ensure reliable quality and timely delivery to meet your personalized operational needs.

Worry-free after-sales service

We provide a product warranty of up to 6 months or 2,000 hours, reflecting our confidence in durability and reliability to ensure quality standards.

FAQ

Q: What is the function of the boom cylinder?

A: The boom cylinder is a key component of the excavator. It generates power through the hydraulic system to control the up and down movement and swing of the boom. By adjusting the pressure and stroke of the boom cylinder, the excavator can complete various complex excavation and handling tasks, greatly improving the operating efficiency.

Q: Can hydraulic cylinders be repaired?

A: Yes, hydraulic cylinders, including Cat boom cylinders, can be repaired. If you need repair services for your hydraulic cylinders, we offer a wide range of tools and expertise to handle the repair process. Our team is equipped with the necessary skills and tools to fix any issues with your hydraulic cylinders.

Q: What are the parts of the hydraulic cylinder?

A: The components of a hydraulic cylinder typically include: 1. Cylinder barrel: The main body of the cylinder that houses the piston and provides a chamber for the hydraulic fluid. 2. Piston: The sliding member that converts hydraulic pressure into mechanical force. 3. Piston rod: The rod connected to the piston that extends outside the cylinder barrel and transmits force to the connected mechanism. 4. Rod end: The end of the piston rod, which may be threaded to the mechanism or have a flange to provide support. 5. Cylinder head: The top and bottom ends of the cylinder barrel, containing the hydraulic fluid inlet and outlet ports. 6. Seal: An elastomeric or metal component that prevents hydraulic fluid leakage between the piston and the cylinder barrel and between the piston rod and the cylinder barrel. 7. Gland: An assembly that includes the rod seal and may also include the piston seal, fixed in place to maintain seal integrity. 8. Wear ring: An additional ring around the piston or rod end that protects the seal from excessive wear. 9. Buffer: A device that absorbs the impact of the piston at the end of its stroke to prevent cylinder damage. 10. Limit switch: An electrical switch that can be used to monitor piston position and provide feedback or control. 11. Cleaner Ring: Sometimes used to clear debris from the cylinder, especially in dirty environments. These parts work together to form a hydraulic cylinder that converts hydraulic pressure into linear motion.

Q: What are the parts and function of the hydraulic tools?

A: Hydraulic tools are powered by hydraulic fluid and are used in a variety of applications, from construction and mining to manufacturing and automotive repair. The parts and functions of a hydraulic tool may vary depending on the specific tool, but here are some common components and their functions: 1. Hydraulic Pump: The pump is the heart of the hydraulic system and is responsible for creating and maintaining pressure in the system. It can be a gear pump, vane pump, or piston pump. 2. Motor: The motor is used to power the pump, converting electrical energy into mechanical energy. 3. Valve: Valves control the flow of hydraulic fluid within the system. They can be directional valves, pressure relief valves, flow control valves, or check valves. 4. Cylinder: Cylinders convert hydraulic pressure into linear force and motion. They are used to push, pull, lift, or lower objects. 5. Hoses and Piping: These components move hydraulic fluid from the pump to the cylinder and other components. 6. Filter: The filter removes impurities from the hydraulic fluid to prevent damage to system components. 7. Tank: The tank stores the hydraulic fluid and helps maintain system pressure. It also provides a reservoir for the pump. 8. Accumulators: Accumulators store energy in the form of hydraulic fluid. They can be used to provide additional power during high-demand operations. 9. Control Panel: The control panel allows the operator to adjust settings and monitor the operation of the hydraulic system. 10. Gauges: Gauges measure pressure, flow, and temperature in the hydraulic system, providing feedback for proper operation. Hydraulic tools function by providing powerful and precise mechanical force, movement, or deformation through the use of hydraulic fluid and hydraulic components. They are used for tasks that require high levels of force or movement, such as lifting heavy objects, pushing and pulling large loads, and operating machinery.
