Main specification parameter for Volvo 750 excavator bucket
| Model |
Volvo EC750D |
Volvo EC750CN4 |
Volvo EC750CN4 |
| Operating weight | 72700 - 74700 kg | 75200 kg | 100945 kg |
| Bucket capacity | 3.3 - 5.16 m³ | 3.3 - 5.16 m | 3.3 - 5.16 m |
| Digging force | 325 kN | 323 kN | 383 kN |
| Maximum digging depth | 7210 mm | 7210 mm | 7210 mm |
| Maximum digging radius | 11460 mm | 11460 mm | 11460 mm |
Product Details
|
Product Name |
bucket |
|
Origin |
United States |
|
Brand Name |
STONE |
|
Model |
EC750 |
|
Price |
Negotiable |
|
Delivery Time |
0-30 Days |
|
Payment Term |
L/C, T/T |
|
Price Term |
FOB, CIF, CFR |
|
Supply Capacity |
50,000 PCS/Month |
|
Minimum Order Quantity |
1 PC |
|
Material |
high-strength wear-resistant steel |
|
Technology |
Precision Machining |
|
Surface |
Treatment Anti-Corrosion Coating |
|
Quality |
Original Factory Standard |
|
After-Sales Service |
Full Support, Online Service |
|
Color |
Standard Caterpillar Yellow or Customizable |
|
Application |
Excavator |

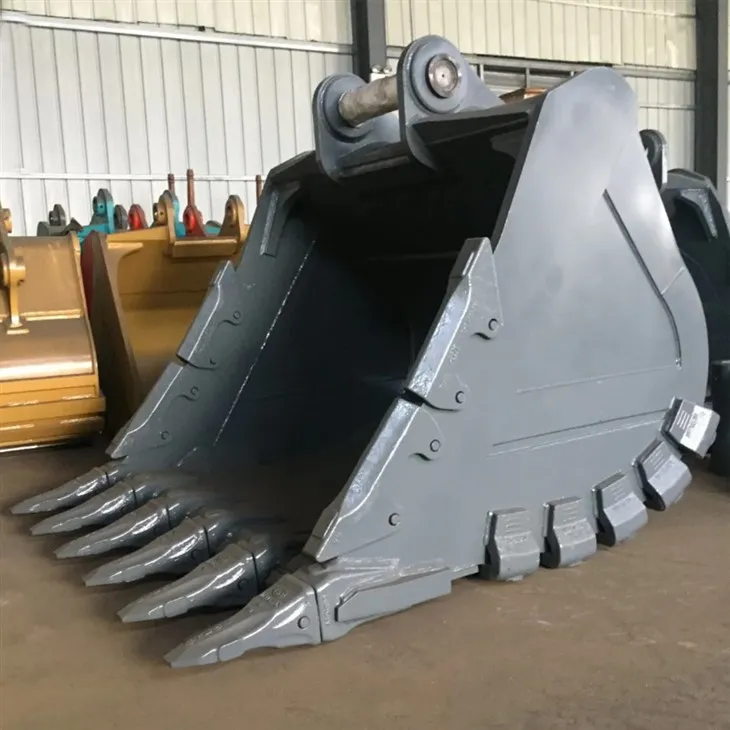

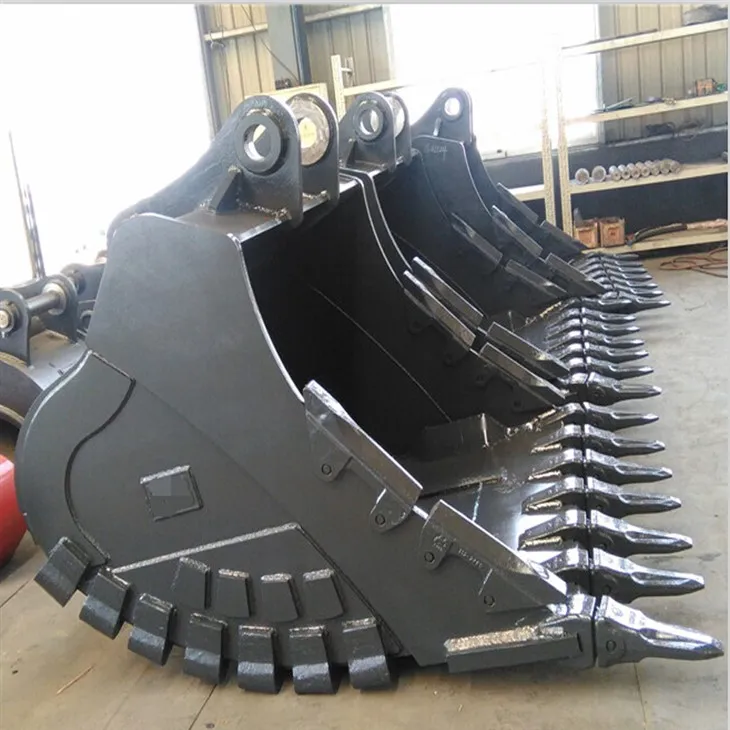

STONE BRAND - Wear-resistant materials
Application of high-strength wear-resistant steel
The Volvo EC750 bucket body is usually made of high-strength wear-resistant steel, which has excellent impact resistance and wear resistance and can withstand high-frequency impact and friction under harsh working conditions.
For example, when digging rocks or hard soil, the bucket body and bucket teeth of the bucket will frequently contact hard materials. High-strength wear-resistant steel can effectively reduce wear and extend the service life of the bucket.
Customized application of wear-resistant plates
Wear-resistant plates are usually installed on key parts of the bucket (such as the bottom, sides and edges of the bucket body).
These wear-resistant plates can be customized according to the size and shape of the bucket to achieve the best protection effect. For example, some buckets use a double arc design at the bottom to reduce material friction and further reduce wea
STONE BRAND - Convenient transportation and installation
Modular split design
The bucket of Volvo EC750 adopts modular design and can be quickly disassembled into 3-4 modules, which is convenient for road transportation and installation in narrow sites. This design significantly reduces transportation costs and installation time, especially for projects that require frequent transfers.
Automatic alignment system
When the Volvo EC750 bucket is replaced, the hydraulic interface is equipped with an automatic alignment system, which can be quickly calibrated to shorten downtime.
This function ensures that the equipment can quickly resume operation after the bucket is replaced, improving work efficiency.
Quick installation and commissioning
Volvo's modular design is not only easy to disassemble, but also supports quick installation and commissioning. All modular components are standardized to ensure the convenience and efficiency of on-site assembly.
Standardized interface design
The connection between the Volvo EC750 bucket and the excavator adopts a standardized interface with strong compatibility and is suitable for a variety of Volvo equipment models.
This design reduces the additional cost and time loss caused by equipment replacement or upgrade.
On-site support and quick response
Volvo provides 24-hour global technical support, and the on-site modification and emergency repair team can respond quickly to customer needs.
This service model ensures that any problems encountered during transportation and installation can be solved in a timely manner.
Optimized maintenance and repair
The design of the Volvo EC750 takes full account of the convenience of maintenance, and all key components and interfaces are easy to access and maintain.
This design not only facilitates daily maintenance, but also reduces downtime caused by improper maintenance.
STONE BRAND - Adapt to different working conditions
1. High material recovery rate and green manufacturing
The Volvo EC750 bucket is designed with full consideration of the recyclability of materials. Its main structural parts are made of high-strength steel, more than 90% of which can be recycled and reused after the Volvo bucket is scrapped.
This design not only reduces resource waste, but also meets green manufacturing standards and reduces environmental impact.
The Volvo Group has always been committed to promoting a circular economy, ensuring that products can be efficiently recycled at the end of their life cycle by optimizing material selection and design.
In addition, Volvo has focused on reducing the use of materials and avoiding the use of hazardous substances during the product design stage, further improving the sustainability of its products.
2. Low-noise technology and environmentally friendly hydraulic system
The Volvo bucket is designed in collaboration with the hydraulic system, which effectively reduces noise during operation by optimizing hydraulic flow and reducing internal losses. This low-noise technology not only improves the working environment of operators, but also reduces sound pollution to the surrounding environment.
At the same time, the intelligent hydraulic system equipped with the Volvo EC750 uses on-demand flow control technology to reduce energy losses in the hydraulic system.
This design not only improves fuel efficiency, but also reduces the carbon emissions of the equipment. The Volvo Group is committed to reducing the environmental footprint of its products during the use phase through technological innovation, ensuring that its products have minimal impact on the environment throughout their life cycle.
3. Durability and long-life design
The key parts of the Volvo EC750 bucket are made of wear-resistant materials and reinforced design, which can withstand high-frequency impacts under harsh working conditions.
This design extends the service life of the bucket and reduces the waste of resources caused by frequent replacement of parts.
Volvo focuses on extending the service life and reducing maintenance requirements in product design. Through high-quality materials and advanced manufacturing processes, it ensures that the bucket can maintain efficient operation under extreme conditions. In addition, Volvo also provides remanufacturing services to refurbish and optimize old parts to further extend their service life. This sustainable design concept not only reduces resource consumption, but also reduces long-term operating costs for customers.
STONE BRAND - Special environmental adaptability
Design for extreme cold environments
The steel of the bucket of the Volvo EC750 has been treated with cryogenic toughness to adapt to extreme cold environments as low as -40°C. This design ensures that the bucket will not affect operating efficiency due to brittle fracture under low temperature conditions, and the wear-resistant parts and protective devices of the bucket have also been optimized to cope with harsh conditions such as ice and snow.
Design for high temperature environments
The Volvo EC750 bucket surface adopts a high-temperature anti-deformation coating, which can effectively prevent structural deformation caused by thermal expansion under high temperature conditions. In addition, Volvo's electronically controlled hydraulic system can also maintain efficient operation under high temperature conditions and reduce the heat loss of hydraulic oil.
High altitude optimization
The hydraulic system of the Volvo EC750 has an automatic compensation function, which can automatically adjust the power output in a low-oxygen environment to ensure operating efficiency in high altitude areas. This design allows the equipment to maintain stable excavation and loading capabilities in plateau areas above 4,500 meters above sea level.
Adaptability to hot and humid environments
The Volvo EC750 bucket and hydraulic system have been specially sealed to effectively prevent moisture and corrosive gases in hot and humid environments from corroding the equipment. This design ensures the reliability and durability of the equipment during long-term operation in high-humidity areas.
Desert environment protection
The bucket's guard has been optimized to effectively resist the erosion of sand and dust. At the same time, the equipment's heat dissipation system has been strengthened to maintain good heat dissipation performance in high-temperature desert environments.
Snow and ice road operation capability
The edge and tooth tip of the Volvo EC750 Bucket are made of highly wear-resistant materials, which can provide better grip and digging efficiency on snow and ice roads. In addition, the equipment's cab is equipped with a heating system to ensure the operator's comfort in cold environments.
STONE BRAND - Actual Case Study of EC750 Excavator Bucket
Project Background
A deepwater port project in China needs to complete the construction of 3.5 kilometers of breakwater within 18 months, involving a large amount of sand and gravel backfilling and waste concrete block cleaning. Traditional equipment frequently cracks the Volvo EC750 bucket due to the high hardness and strong corrosiveness of the material, and the maintenance cost surges.
Solution
The EC750 is equipped with a 5.16 cubic meter ultra-heavy bucket, a 20mm wear-resistant steel plate is added to the bottom of the EC750 bucket, and the side blade adopts double alloy surfacing technology to improve impact resistance and corrosion resistance.
The hydraulic system is enabled in heavy load mode, the digging force is increased to 325 kN, and the intelligent flow distribution is used to reduce no-load energy consumption.
Implementation Effect
Efficiency breakthrough: The daily processing capacity reaches 4,000 tons, which is equivalent to 1.5 times that of traditional equipment, and the construction period is shortened by 15 days.
Cost Optimization: The life of the wear-resistant plate is extended to 8,000 hours, and the maintenance cycle is extended from 200 hours to 300 hours, saving more than 1.2 million yuan in spare parts costs.
Customer feedback: The project party commented that it "performed stably in salt spray environment and became the core construction equipment of the port".
Challenges and needs
After the wildfire in Canada, the disaster area needed to quickly clean up fallen trees and carbonized residues, but the rugged terrain and high-temperature embers caused the overheating failure rate of the hydraulic system of conventional equipment to be as high as 35%.
Technical adaptation
TheVolvo EC750 bucket is equipped with a grab attachment, the tooth tip is made of high-temperature resistant alloy (withstands 800℃ instantaneous high temperature), and the hydraulic pipeline is added with a heat-insulating jacket.
The rugged terrain mode is enabled to automatically adjust the track ground pressure to prevent sinking into the soft ash layer.
Operation results
Stability: 10 hours of continuous operation without failure, the hinge point uses self-lubricating bearings to adapt to dusty environments.
Environmental protection contribution: 300 tons of debris are cleaned up every day, helping to restore 500 hectares of forest land. The government report stated that "the efficiency is 40% higher than that of the old model."
Extreme Environment Test
The Russian Arctic project needs to dig frozen soil and gravel layers at -45℃. The low-temperature embrittlement of conventional steel increases the risk of bucket cracking by 60%.
Technological Innovation
The bucket steel adopts a special formula for the Nordic cold region (low-temperature impact toughness ≥50J, -50℃ test), and the welding process has passed the -60℃ cold bending certification.
The hydraulic oil is upgraded to a synthetic low-temperature model (pour point -60℃), equipped with an electric heating circuit to ensure that the start-up time is ≤15 minutes.
Project Benefits
Reliability: The failure rate is 40% lower than that of competing products, the continuous operation rate is 92%, and the construction period is shortened by 20%.
Economic efficiency: The average daily loss caused by equipment downtime is reduced by about 80,000 US dollars, and the contractor was awarded the title of "Polar Engineering Benchmark Equipment".
4. Ecological Restoration: Desertification Control
Project Goal
200 kilometers of irrigation canals need to be dug and sand-fixing materials need to be transported on the edge of the Sahara Desert, but the intrusion of sand and dust has caused the equipment wear rate to increase by 3 times.
Dust-proof design
Multi-layer filters are added inside the Volvo EC750 bucket , and the key bearings adopt a closed dust-proof structure to reduce sand intrusion.
The surface is sprayed with a nano-wear-resistant coating (hardness HV1200) to reduce the friction coefficient and extend the service life.
Ecological contribution
Efficiency and environmental protection: The average daily excavation volume is 1,500 cubic meters, saving 30% water compared with traditional equipment (through precise hydraulic control).
Long-term benefits: The life of the wear-resistant coating is extended by 30%, supporting the completion of 500 hectares of greening. The United Nations Environment Program lists it as a "recommended solution for desert control."
STONE BRAND - After-sales and service
USER
Personalized configuration
Quick response and on-site support
Full life cycle service
STONE BRAND - About STONE
Stone (Shanghai) Engineering Machinery Co., Ltd. is a leading supplier of engineering machinery parts, focusing on providing high-quality parts for mining companies. Since its establishment in 2004, we have been based in Shanghai, China, and have built our own brand STONE, becoming a trusted choice in the industry. We are committed to providing a variety of parts including bulldozers, excavators and wheel loaders for well-known brands such as Carter and Komatsu. Our product line covers a full range of OEM parts, such as Track Chain, Track Rollers, Sprocket, Excavator Buckets, Blades, Excavator Cylinders, Swing Circles, and various electrical and hydraulic components to ensure that our customers' stringent requirements for quality and performance are met.
Professional team
7x24 hours delivery
834M
Total Freelancer
732M
Positive Review
90M
Order recieved
236M
Projects Completed
FAQ
1. What are the main models and technical features of Volvo EC750 series excavators?
Volvo EC750 series excavators mainly include EC750E, EC750D, EC750DL and EC750 CN4, each with its own characteristics in technical configuration and performance.
EC750E:
This model is equipped with Volvo D16 engine with a power of 385 kW (523.45 hp) and a bucket capacity range of 3.3 - 5.16 m³, suitable for large earthwork and mining operations.
Its hydraulic system and electronic control technology optimize fuel efficiency, and it is equipped with a FOG (Falling Object Guard) and FOPS (Falling Object Protection Structure) certified cab to ensure safe operation1.
EC750D:
This model is known for its efficient electro-hydraulic control system, which can achieve faster operation cycle time.
With an engine power of 385 kW and a bucket capacity of 3.3 - 5.16 m³, it is suitable for heavy-duty operations such as mining and quarrying57.
EC750DL:
This model further optimizes fuel efficiency and operational stability based on the EC750D.
Its engine power is 393 kW, equipped with an advanced hydraulic system and ECO mode, which can reduce fuel consumption while ensuring high performance313.
EC750 CN4:
This is a new model launched by Volvo that meets China's National IV emission standards. It is equipped with a Volvo D16J engine with a power of 393 kW.
Its fuel efficiency is about 5% higher than the previous generation, and its productivity is increased by 15%, which is suitable for high altitude and severe cold conditions.
2. How fuel efficient are the Volvo EC750 series excavators?
Advanced engine technology:
The EC750 series is equipped with the Volvo D16 series engine, which has been proven in the market for many years and features high power and low fuel consumption.
Intelligent electronically controlled hydraulic system:
The EC750 series is equipped with a new generation of electronically controlled hydraulic system, which can adjust the hydraulic flow according to actual operating needs, reduce energy loss, further optimize the performance of the hydraulic system, and reduce fuel consumption while ensuring operating efficiency.
3. How comfortable and safe is the Volvo EC750 series excavator?
The Volvo EC750 series excavator performs well in terms of driving comfort and safety, which is mainly reflected in the following aspects:
Cab design:
The EC750 series cab adopts a low-noise design, spacious interior space, air-conditioning vents and adjustable seats to ensure that the operator remains comfortable during long hours of operation.
In addition, the layout of the cab is ergonomic, and the joystick and buttons are designed for easy operation.
Vision and safety configuration:
The cab is equipped with a rearview camera, providing a 360° blind spot view, ensuring that the operator can clearly observe the surrounding environment under complex working conditions.
In addition, the EC750 series is also equipped with FOG (falling object guard) and FOPS (falling object protection structure) as standard, further improving operational safety.
Stability design: The EC750 series has a wide and retractable track design, and the counterweight structure is optimized to maintain excellent balance and stability in rugged terrain, reducing operator fatigue.
4. What are the advantages of the Volvo EC750 excavator compared with other similar products?
The Volvo EC750 excavator has excellent performance and has significant advantages over other similar products.
First of all, its Volvo D16 engine provides powerful power output, higher fuel efficiency and lower emissions.
The new generation of electronically controlled hydraulic system not only improves digging force and operating efficiency, but also reduces energy loss by optimizing flow and pressure control.
In addition, the cab design and operating comfort of the Volvo EC750 are also one of its highlights. The spacious cab and humanized design can significantly reduce the fatigue of operators.
In terms of stability, the model adopts a wider track gauge and telescopic chassis, which can maintain better balance on complex terrain.
Volvo also provides a variety of working mode options, including ECO mode and maximum power mode, which operators can flexibly adjust according to specific working conditions to achieve optimal working efficiency.
Overall, the Volvo EC750 excavator stands out among similar products with its powerful power, efficient hydraulic system, comfortable operating environment and reliable quality, and can provide users with higher productivity and lower operating costs.
